Серия украшений с логотипом инди-студии «House of hoax»
Содержание
1. Концепция
2. Промо 2.1. Кольцо 2.2. Браслет 2.3. Подвеска 2.4. Левая серьга 2.5. Правая серьга
3. Эскизы 3.1. Кольцо 3.2. Браслет 3.3. Подвеска 3.4. Левая серьга 3.5. Правая серьга
4. Демонстрация моделей 4.1. Кольцо 4.2. Браслет 4.3. Подвеска 4.4. Левая серьга 4.5. Правая серьга
5. Ссылка на облако с моделями
6. Рекламный постер
7. Техническое задание
Концепция
House of hoax — инди-студия, занимающаяся разработкой необычных игр, и продвигающая современную контркультуру.
Логотип House of hoax, разработанный мной БЕЗ ИСПОЛЬЗОВАНИЯ НЕЙРОСЕТЕЙ и НЕ ЯВЛЯЮЩИЙСЯ частью данного проекта, изображение используется исключительно для ознакомления с концепцией.
В качестве материала для этого проекта я выбрал разработку моделей для 3D-печати восковой основы под отливку ювелирных украшений с логотипом студии.
Эти украшения могли бы использоваться как подарки отдельным членам команды на особо важные события в их жизни и в жизни команды.

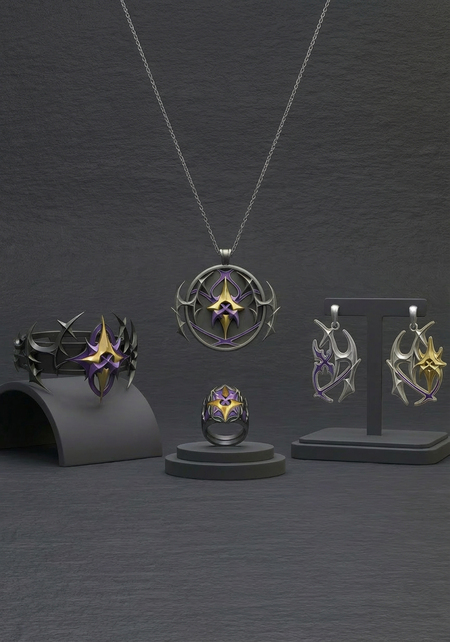

Промо
Эскизы
Для генерации использовалась модель gemini 3 pro image 2k (nano-banana-pro)
Запрос строился по шаблонам.
Для генерации базового изображения:
Transform the provided logo into a jewelry design sketch intended strictly as a reference for 3D modeling and CAD production. Design a high-end НАЗВАНИЕ УКРАШЕНИЯ with a solid, unified construction.
Material layers: - Yellow gold: the central star-shaped emblem, sculpted as a raised solid element. - Purple enamel: the X-shaped core and all thin connecting lines, set into recessed enamel channels. - Blackened silver: a continuous base plate forming the main pendant body, the surrounding frame, wing-like extensions, and the integrated bail.
Design constraints: - All decorative elements are physically connected and seated onto the blackened silver base plate; no floating or detached elements. - The bail is structurally integrated into the top of the base plate, engineered as a functional attachment point for a chain. - Clear depth hierarchy: base plate → enamel inlays → raised gold emblem.
Preserve the original symmetry and sharp ornamental geometry of the logo, translating it into solid, manufacturable three-dimensional forms. Emphasize clean topology, consistent wall thickness, precise edges, and realistic undercuts suitable for casting and CNC.
High-detail 3D jewelry design sketch, front-oriented with slight perspective, neutral dark background, studio lighting, CAD-friendly reference, no painterly or illustrative effects.
Для генерации референса в разных положениях:
Using the provided reference image, generate a multi-view jewelry design visualization of the same object. The goal is to create accurate reference images for 3D modeling.
Generate three consistent views of the exact same pendant: 1. Front view 2. Side view 3. Back view
Requirements: - All three views must depict the same geometry, proportions, and design details. - No artistic reinterpretation or redesign; strictly preserve the original form. - Maintain consistent scale, symmetry, and alignment across all views. - Show realistic thickness, depth, and construction suitable for jewelry manufacturing. - Clearly show the back structure, base plate, and integrated bail. - No floating elements; all parts must be physically connected.
Presentation: - Arrange the three views side by side in a single image or as clearly separated panels. - Neutral dark or gray background. - Clean studio lighting with minimal shadows. - Technical, CAD-friendly appearance.
Style: - High-detail 3D jewelry reference - Clean geometry, sharp edges - No painterly effects, no illustration style - No perspective distortion (orthographic or near-orthographic views preferred)
Transform the provided logo into a jewelry design sketch intended strictly as a reference for 3D modeling and CAD production. Design a high-end ring with a solid, unified construction.
Material layers: - Yellow gold: the central star-shaped emblem, sculpted as a raised solid element. - Purple enamel: the X-shaped core and all thin connecting lines, set into recessed enamel channels. - Blackened silver: a continuous base plate forming the main pendant body, the surrounding frame, wing-like extensions, and the integrated bail.
Design constraints: - All decorative elements are physically connected and seated onto the blackened silver base plate; no floating or detached elements. - The bail is structurally integrated into the top of the base plate, engineered as a functional attachment point for a chain. - Clear depth hierarchy: base plate → enamel inlays → raised gold emblem.
Preserve the original symmetry and sharp ornamental geometry of the logo, translating it into solid, manufacturable three-dimensional forms. Emphasize clean topology, consistent wall thickness, precise edges, and realistic undercuts suitable for casting and CNC.
High-detail 3D jewelry design sketch, front-oriented with slight perspective, neutral dark background, studio lighting, CAD-friendly reference, no painterly or illustrative effects.
Transform the provided logo into a jewelry design sketch intended strictly as a reference for 3D modeling and CAD production. Design a high-end bracelet with a solid, unified construction.
Material layers: - Yellow gold: the central star-shaped emblem, sculpted as a raised solid element. - Purple enamel: the X-shaped core and all thin connecting lines, set into recessed enamel channels. - Blackened silver: a continuous base plate forming the main pendant body, the surrounding frame, wing-like extensions, and the integrated bail.
Design constraints: - All decorative elements are physically connected and seated onto the blackened silver base plate; no floating or detached elements. - The bail is structurally integrated into the top of the base plate, engineered as a functional attachment point for a chain. - Clear depth hierarchy: base plate → enamel inlays → raised gold emblem.
Preserve the original symmetry and sharp ornamental geometry of the logo, translating it into solid, manufacturable three-dimensional forms. Emphasize clean topology, consistent wall thickness, precise edges, and realistic undercuts suitable for casting and CNC.
High-detail 3D jewelry design sketch, front-oriented with slight perspective, neutral dark background, studio lighting, CAD-friendly reference, no painterly or illustrative effects.
Transform the provided logo into a jewelry design sketch intended strictly as a reference for 3D modeling and CAD production. Design a high-end pendant with a solid, unified construction.
Material layers:
Yellow gold: the central star-shaped emblem, sculpted as a raised solid element. Purple enamel: the X-shaped core and all thin connecting lines, set into recessed enamel channels. Blackened silver: a continuous base plate forming the main pendant body, the surrounding frame, wing-like extensions, and the integrated bail. Design constraints:
All decorative elements are physically connected and seated onto the blackened silver base plate; no floating or detached elements. The bail is structurally integrated into the top of the base plate, engineered as a functional attachment point for a chain. Clear depth hierarchy: base plate → enamel inlays → raised gold emblem. Preserve the original symmetry and sharp ornamental geometry of the logo, translating it into solid, manufacturable three-dimensional forms. Emphasize clean topology, consistent wall thickness, precise edges, and realistic undercuts suitable for casting and CNC.
High-detail 3D jewelry design sketch, front-oriented with slight perspective, neutral dark background, studio lighting, CAD-friendly reference, no painterly or illustrative effects.
Make it on a coin-like base to fit all the details on a same round base
Transform the provided logo into a jewelry design sketch intended strictly as a reference for 3D modeling and CAD production. Design a high-end pair of earrings with a solid, unified construction. Left earring should contain the left letter H and the golden star, the right earring should containt the purple letter X and the right H. Material layers: — Yellow gold: the central star-shaped emblem, sculpted as a raised solid element. — Purple enamel: the X-shaped core and all thin connecting lines, set into recessed enamel channels. — Blackened silver: a continuous base plate forming the main pendant body, the surrounding frame, wing-like extensions, and the integrated bail. Design constraints: — All decorative elements are physically connected and seated onto the blackened silver base plate; no floating or detached elements. — The bail is structurally integrated into the top of the base plate, engineered as a functional attachment point for a chain. — Clear depth hierarchy: base plate → enamel inlays → raised gold emblem. Preserve the original symmetry and sharp ornamental geometry of the logo, translating it into solid, manufacturable three-dimensional forms. Emphasize clean topology, consistent wall thickness, precise edges, and realistic undercuts suitable for casting and CNC. High-detail 3D jewelry design sketch, front-oriented with slight perspective, neutral dark background, studio lighting, CAD-friendly reference, no painterly or illustrative effects.
Transform the provided logo into a jewelry design sketch intended strictly as a reference for 3D modeling and CAD production. Design a high-end pair of earrings with a solid, unified construction. Left earring should contain the left letter H and the golden star, the right earring should containt the purple letter X and the right H. Material layers: — Yellow gold: the central star-shaped emblem, sculpted as a raised solid element. — Purple enamel: the X-shaped core and all thin connecting lines, set into recessed enamel channels. — Blackened silver: a continuous base plate forming the main pendant body, the surrounding frame, wing-like extensions, and the integrated bail. Design constraints: — All decorative elements are physically connected and seated onto the blackened silver base plate; no floating or detached elements. — The bail is structurally integrated into the top of the base plate, engineered as a functional attachment point for a chain. — Clear depth hierarchy: base plate → enamel inlays → raised gold emblem. Preserve the original symmetry and sharp ornamental geometry of the logo, translating it into solid, manufacturable three-dimensional forms. Emphasize clean topology, consistent wall thickness, precise edges, and realistic undercuts suitable for casting and CNC. High-detail 3D jewelry design sketch, front-oriented with slight perspective, neutral dark background, studio lighting, CAD-friendly reference, no painterly or illustrative effects.
Демонстрация моделей
Так как печать будет производиться из воска, наложение текстур не имеет смысла, так как цвет будет зависеть от материалов постобработки согласно референсам-эскизам.
Ссылка на облако с моделями
Рекламный постер
Техническое задание
ТЗ на 3D-печать восковых моделей
Материал: Литейный воск для 3D-печати (Castable Wax / Wax-like Resin с чистым выгоранием).
Технология печати: Тип печати: SLA / DLP / MJ (предпочтительно MJ для высокой детализации). Толщина слоя: 0,016–0,03 мм. Точность: ±0,05 мм. Минимальная толщина стенки: не менее 0,6 мм (рекомендуемо 0,8 мм). Минимальный размер рельефных элементов: 0,2–0,3 мм.
Ориентация и поддержка: Минимизация поддержек на лицевых поверхностях. Поддержки легкоудаляемые, без повреждения геометрии.
ТЗ на обработку напечатанных восковых моделей
Очистка: Удаление поддержек вручную или термически, без деформации. Очистка от остатков смолы/воска (при необходимости — изопропиловый спирт или специализированный раствор).
Контроль качества: Визуальный осмотр под увеличением ×5–×10. Проверка размеров критических элементов (посадочные места, рельеф).
Подготовка к литью: Припайка литников воском, совместимым с основной моделью. Исключение острых внутренних углов (радиусы ≥0,3 мм). Поверхность без трещин, расслоений и пузырей.
ТЗ на литьё
Металл: Серебро 925 пробы. Чистота сплава подтверждена сертификатом или пробирным контролем.
Технология: Литьё по выплавляемым моделям (Investment Casting). Формовочная масса — ювелирная, для серебра. Контролируемый режим выжигания воска (полное выгорание без остатков).
Требования к отливке: Полное заполнение формы, без недоливов. Отсутствие пор, раковин и холодных швов в видимых зонах. Допуск на последующую механическую обработку: +0,2–0,3 мм.
ТЗ на работы ювелира
Механическая обработка: Срезка литников, зачистка. Шлифовка и полировка до ювелирного качества поверхности.
Позолота: Тип: гальваническая позолота. Толщина слоя золота: не менее 2–5 микрон. Маскирование зон, не подлежащих позолоте.
Эмалировка: Эмаль: фиолетовая, горячая (печная). Подготовка углублений под эмаль: чистые, без полировки до зеркала. Равномерное заполнение, без пузырей и трещин. Финальная шлифовка и полировка после эмали (без повреждения покрытия).
Финальный контроль: Визуальный контроль качества. Проверка целостности эмали и равномерности позолоты. Соответствие изделию утверждённой 3D-модели и дизайну на 2D-концептах.
